Why Checksums Matter: How syncopio Verifies Every File

Hash Algorithms Compared

Not all hash algorithms are equal. The trade-off is between speed and collision resistance (how hard it is to find two files with the same hash).

Algorithm	Speed (GB/s)*	Output Size	Collision Resistance	Use Case
MD5	~3.5	128 bit	Broken	Legacy systems only
SHA-256	~1.2	256 bit	Strong	Security, compliance
SHA-512	~1.5	512 bit	Strong	High-security environments
XXH3	~30+	64/128 bit	Non-cryptographic	Speed-first integrity
BLAKE3	~8+	256 bit	Strong	Modern replacement for SHA-256

*Approximate single-core throughput on modern x86 hardware. Actual speeds depend on CPU, memory, and implementation.

MD5: Legacy, Avoid for New Deployments

MD5 was the standard for file integrity for decades, and you’ll still find it in many tools (rsync, md5sum). It’s fast and produces compact 128-bit hashes. However, MD5 is cryptographically broken — it’s possible to create different files with the same MD5 hash. For migration integrity checking (not security), MD5 is still functional, but newer options are better in every way.

SHA-256: The Gold Standard for Compliance

SHA-256 is the default choice when compliance or security matters. It’s part of the SHA-2 family, has no known practical attacks, and is required by many regulatory frameworks. The trade-off is speed — SHA-256 is roughly 3x slower than MD5 on the same hardware.

XXH3: When Speed Is Everything

XXH3 is a non-cryptographic hash that runs at 30+ GB/s — limited by memory bandwidth, not CPU. For migration integrity checking where you need speed and aren’t concerned about adversarial collision attacks, XXH3 is excellent.

BLAKE3: The Modern Choice

BLAKE3 combines SHA-256-class security with near-XXH3 speed. It’s parallelizable, produces 256-bit hashes, and is quickly becoming the modern default for file integrity. If you’re choosing a single algorithm for integrity verification, BLAKE3 is hard to beat.

Why Traditional Tools Fall Short

rsync: Checksum as an Afterthought

rsync can verify with checksums, but it’s a separate pass:

# Transfer first
rsync -av /source/ /dest/

# Then verify (reads everything again)
rsync -avc /source/ /dest/

This means:

1. Double the I/O — you read every file twice (once to copy, once to verify)
2. Double the time — verification takes as long as the transfer
3. Race condition — files can change between transfer and verification

For a 200TB migration, a separate verification pass adds another 48 hours. Most admins skip it.

Robocopy: No Checksums at All

Robocopy has no built-in checksum capability. You can compare file sizes and timestamps, but these don’t detect silent corruption. Adding verification means writing PowerShell scripts with Get-FileHash:

# Manual verification after Robocopy
Get-ChildItem -Recurse \\dest\share | ForEach-Object {
    $hash = Get-FileHash $_.FullName -Algorithm SHA256
    # Compare with source... somehow
}

This is slow, error-prone, and not scalable.

rclone: Optional but Extra Pass

rclone supports --checksum for comparison, but similar to rsync, it’s a separate operation that doubles I/O.

The Dual-Checksum Approach

The best approach for migration integrity uses two checksums:

1. Fast hash (XXH3 or CRC32) — computed during transfer for real-time integrity
2. Strong hash (SHA-256 or BLAKE3) — for compliance evidence and long-term verification

Why both?

• The fast hash catches transfer corruption immediately — if the hash doesn’t match after network transfer, the file is retried before moving on
• The strong hash provides cryptographic evidence that can’t be spoofed, meeting compliance requirements for audit trails

How syncopio Verifies Every File

syncopio takes a fundamentally different approach from CLI tools: verification happens during transfer, not after.

During Transfer

1. Source read — the worker reads the file from the source filesystem
2. Hash computation — as bytes stream through memory, checksums are computed in parallel
3. Destination write — bytes are written to the destination
4. Immediate comparison — the computed hash is compared against the source hash

No second pass. No double I/O. No race conditions.

The Result

Approach	I/O Passes	Total Time (200TB)	Integrity Confidence
rsync (no verify)	1	~48 hours	None
rsync + checksum verify	2	~96 hours	High
Robocopy (no verify)	1	~48 hours	None
syncopio (verify during transfer)	1	~48 hours	High

syncopio gives you the same integrity guarantee as rsync’s two-pass approach in half the time.

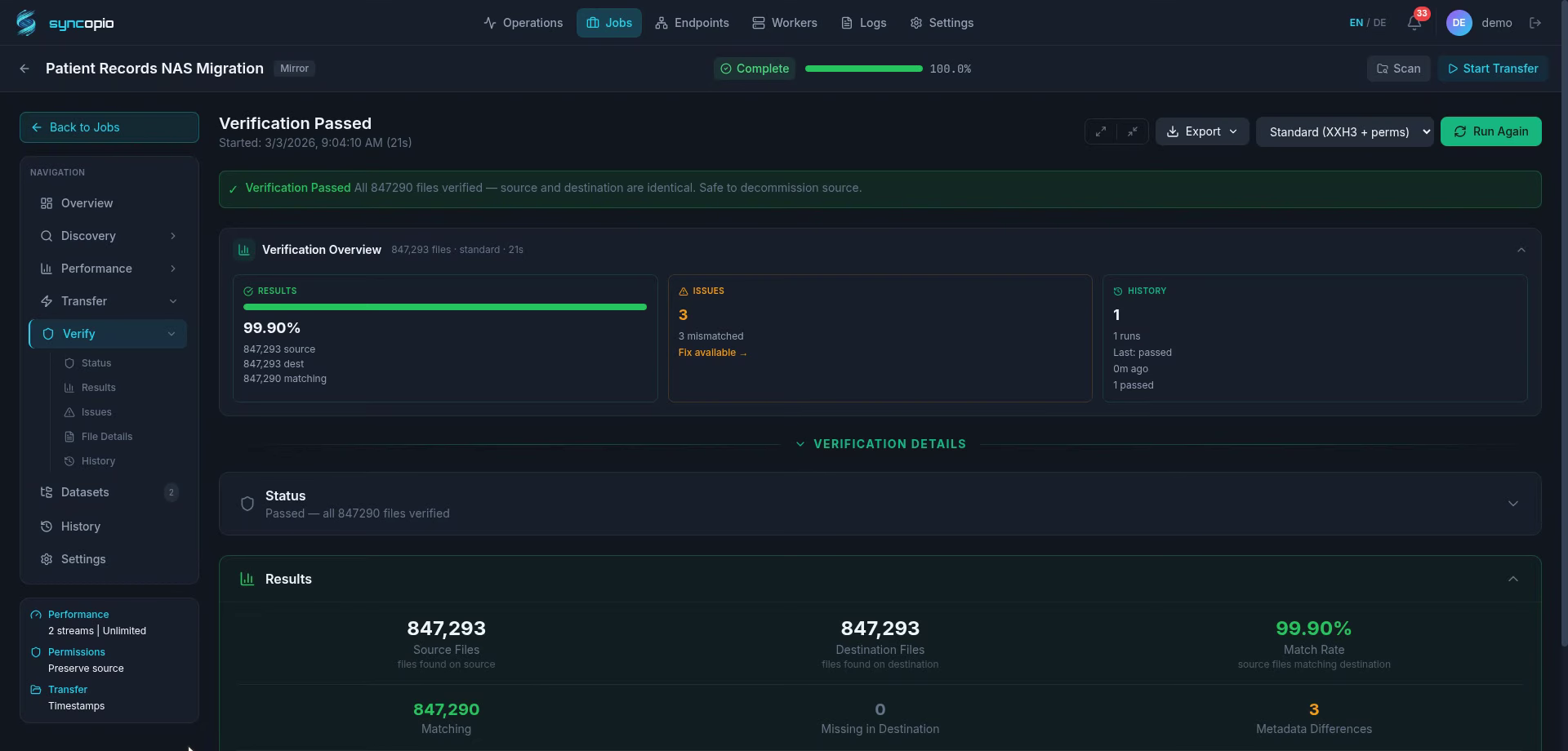

syncopio transfer verification showing per-file checksum status and overall integrity metrics 1200x800

Verification Reports

After transfer, syncopio generates verification reports suitable for compliance audits:

• Per-file checksums — source hash, destination hash, match status
• Transfer metadata — timestamps, byte counts, worker ID
• Summary statistics — total files, verified files, any mismatches
• Export formats — PDF for auditors, CSV for analysis, Excel for stakeholders

Best Practices for Migration Verification

Regardless of what tool you use:

1. Always verify — “no errors in the log” isn’t the same as “data is intact”
2. Use checksums, not just size+timestamp — matching sizes don’t catch corruption
3. Verify on the destination — don’t trust the transfer tool’s self-report; read back from the destination
4. Keep verification evidence — compliance auditors will ask for proof
5. Plan for the verification time — if you’re doing a separate pass, budget for it in your migration timeline
